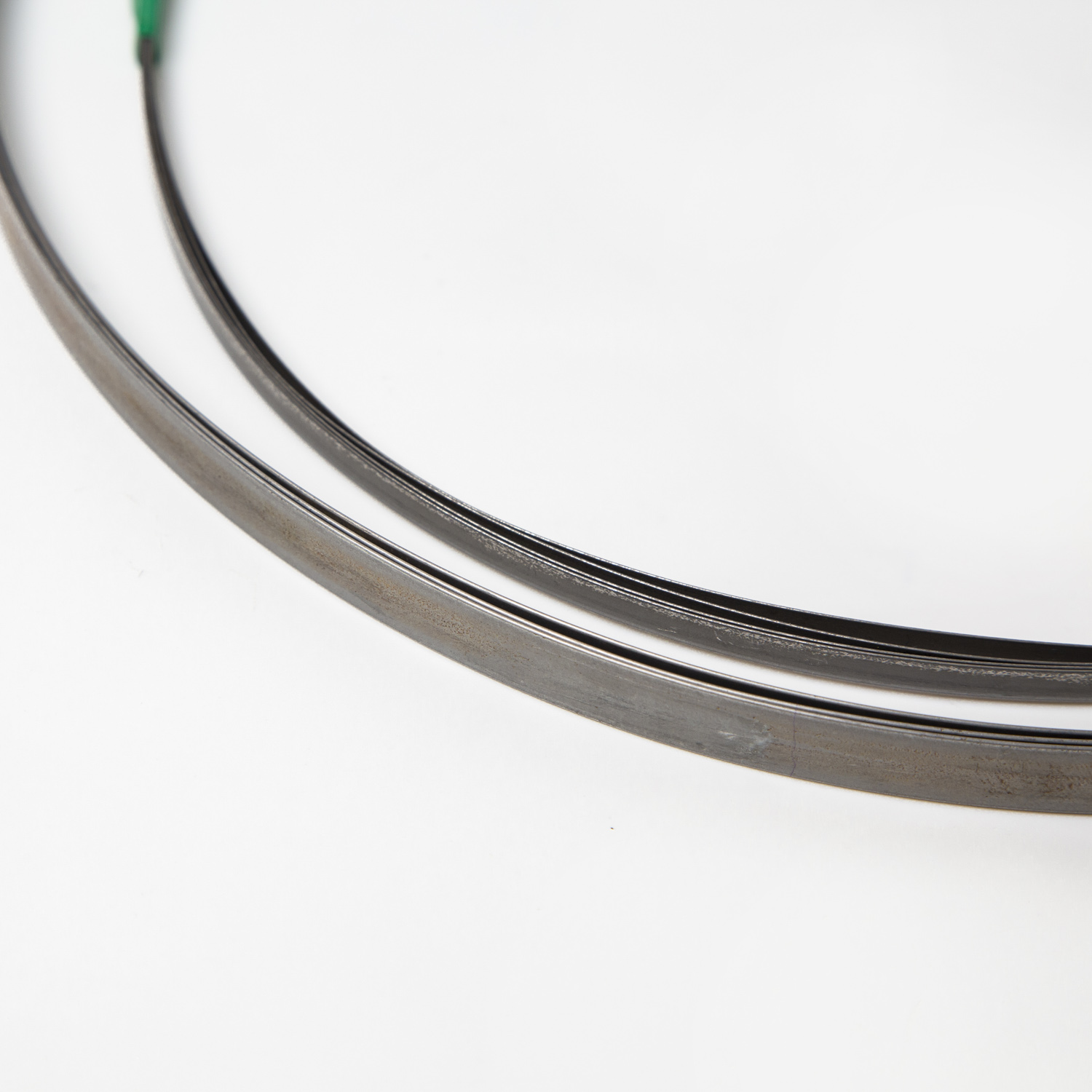

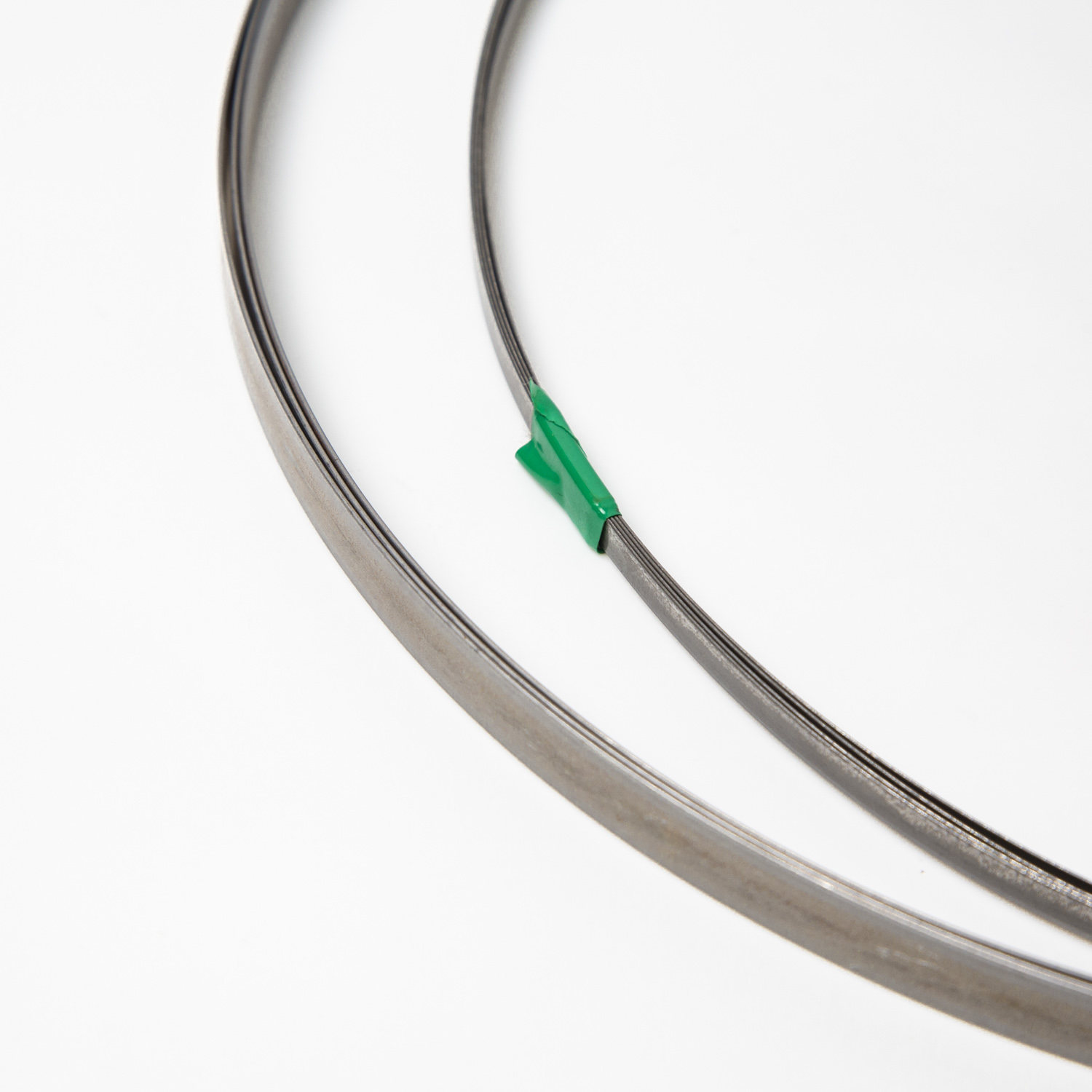

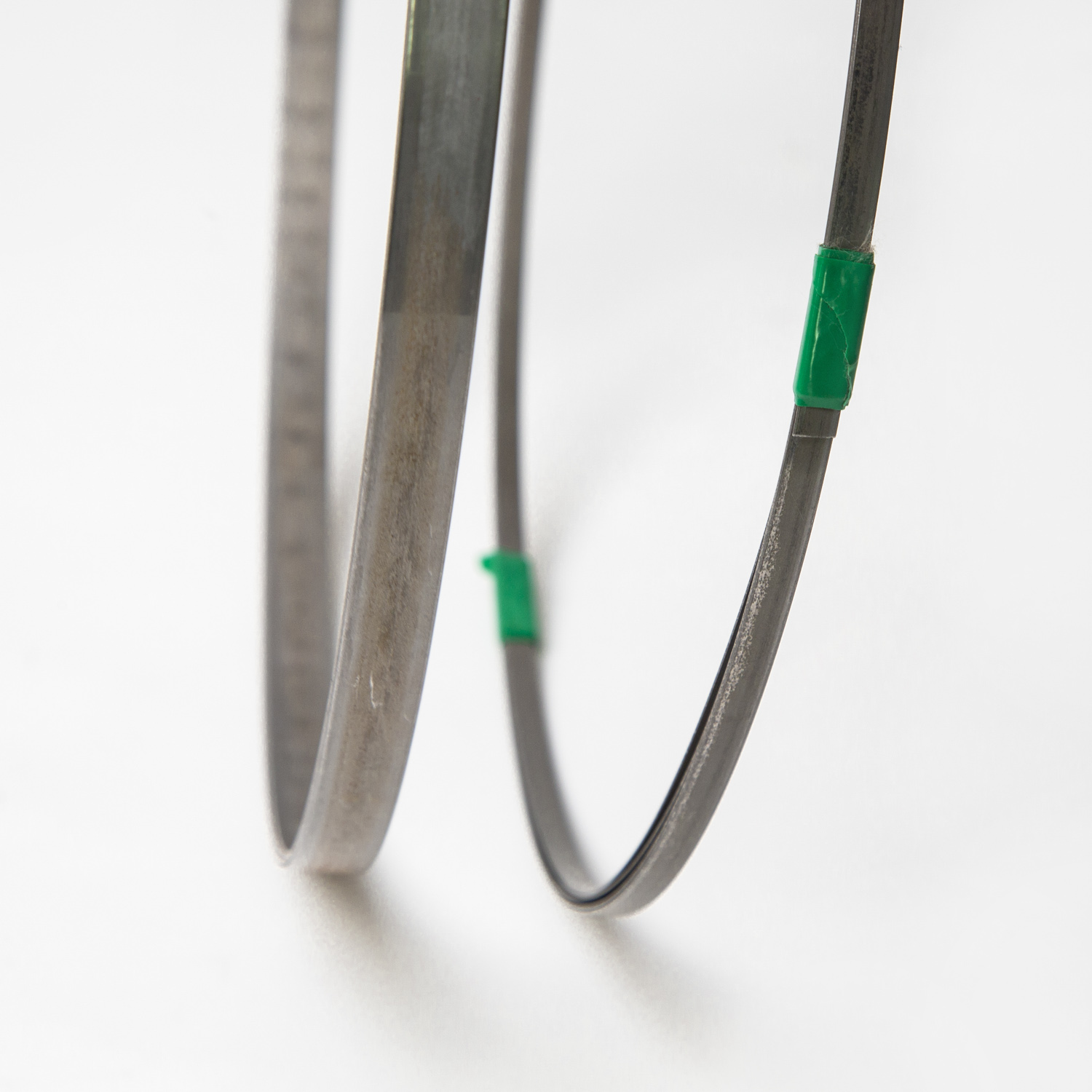

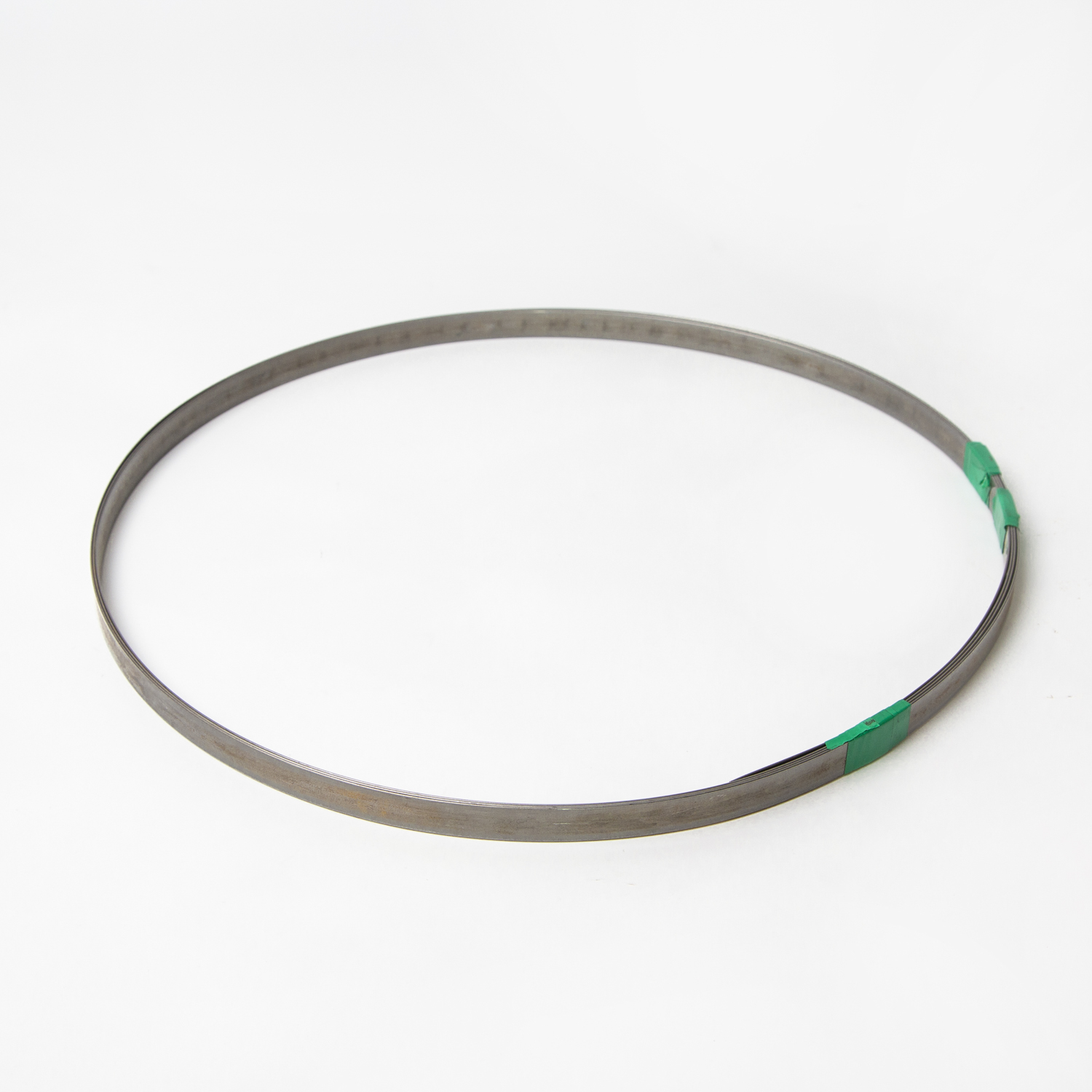

Motorcycle chain bush strip
Product name | strip |
Application | motorcycle chain bush, roller chain bush |
Material | steel grade as customer requirement |
Type | Flat steel wire |

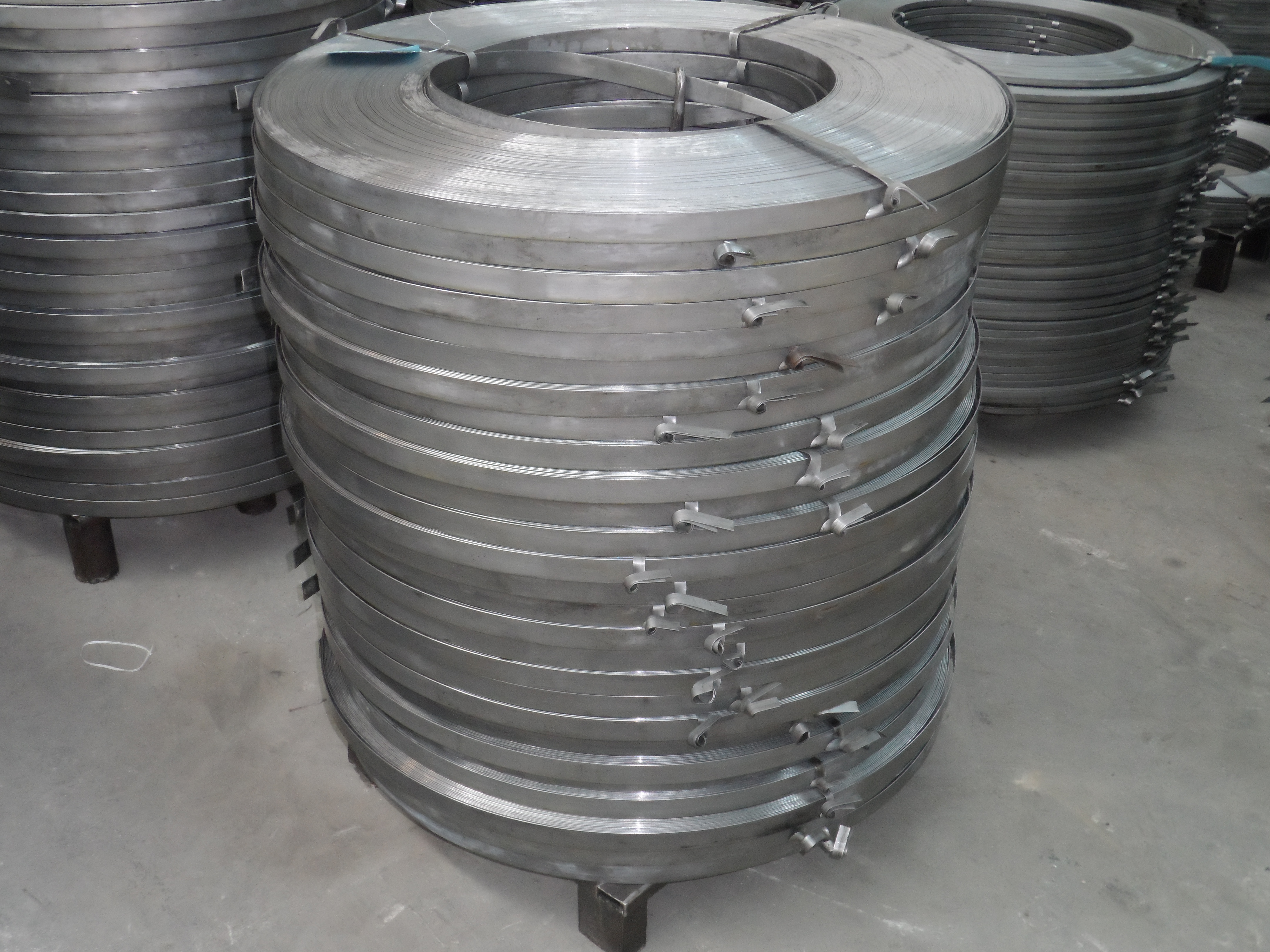

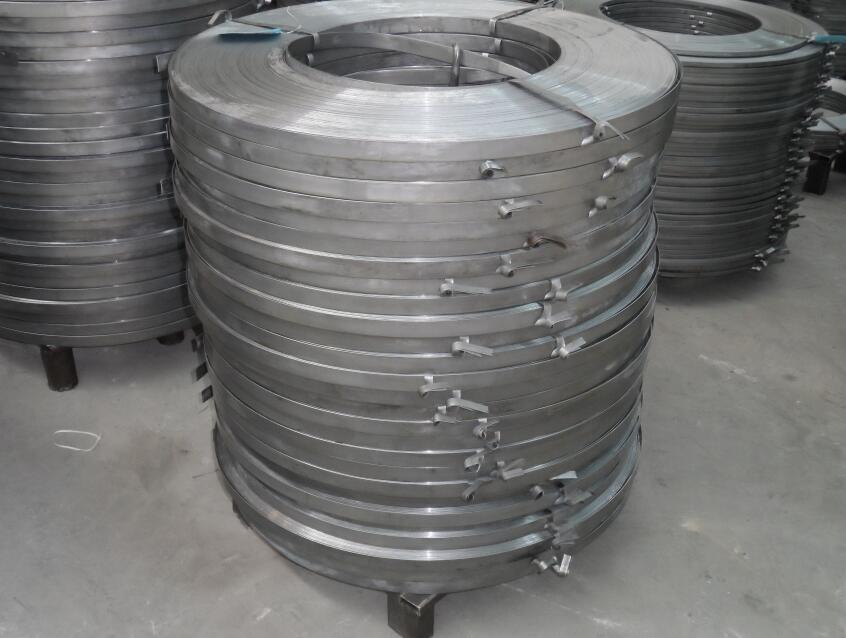

Coils | 20~100kgs |
MOQ | 1 metric ton |
Lead time | 30 Days |

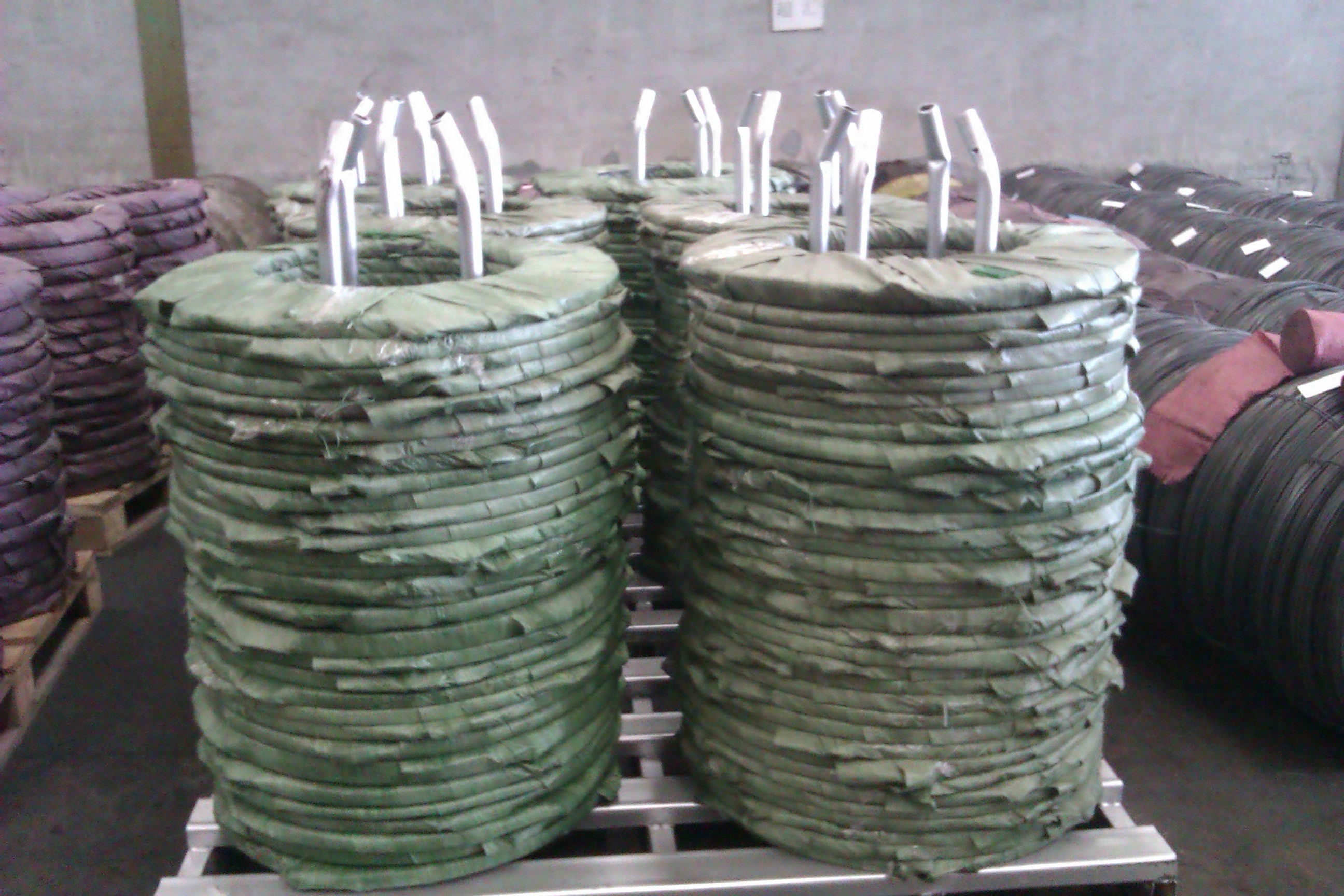

Package | Wooden case or wooden pallet |
HARDNESS | 75-88 HRB |
TENSILE STRENGTH | 45-65KG/MM² |
BURR | NOT ALLOWED |
Pickling | 10 minutes |
ANNEALING | 12 hours |
FAQ
Q:What’s the weight for each coil?
A:it’s according to your requirement, we can make 20~100kgs for each coil

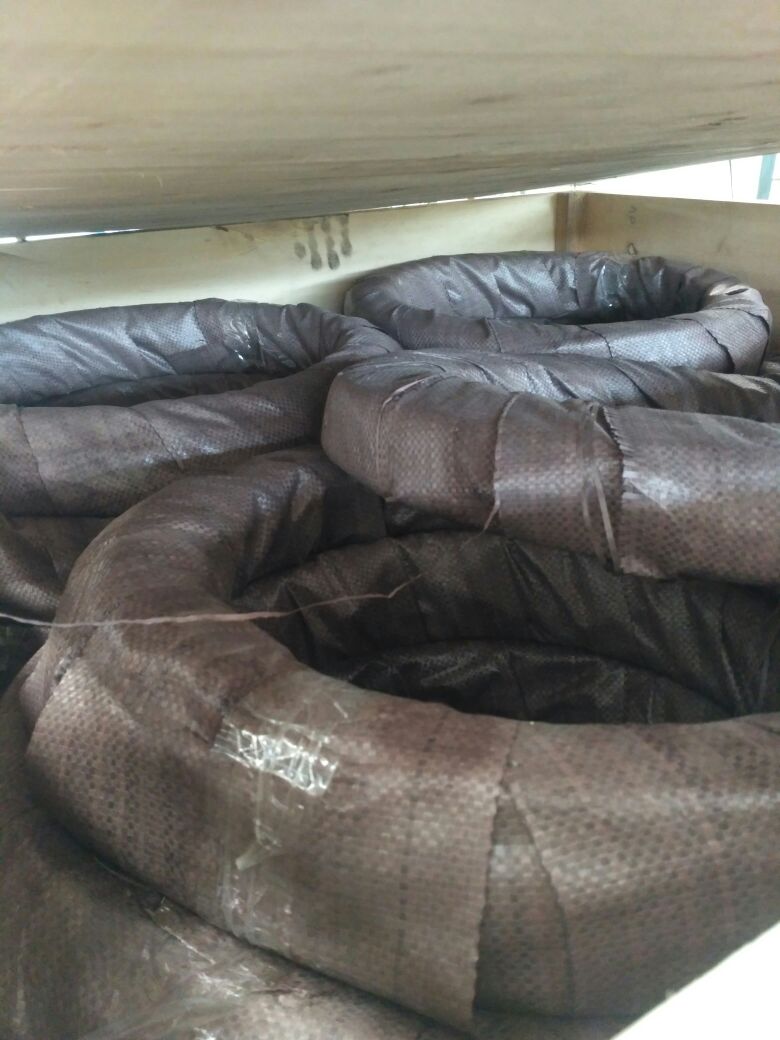

Q:What’s your package?
A:Wooden pallet, iron pallet, wooden case is available
Q:Can you send parts inspection report ?
A:Yes, we will send this test report together with other documents after shipment.
Q:May I visit factory before co-operation
A:We always welcome your visit us to know each other well and know well about our products.
Q:Can you accept small quantity orders
A:Yes, We will give our best service for each order.
Q:Can you supply raw material report?
A:Yes, we will send all documents after shipment
Q:Can you send C.O?
A:Yes
Standard bush material dimension list | |||||
Item | Material grade | Dimension (width*thickness | Hardness | Corner | |
03C | 03C | 20CrMnMo | 3.65-0.03*0.39-0.01 | HRB80-HRB85 | R0.25 mm |
04B | 04B | 20CrMnMo | 4.1-0.04*0.42-0.02 | HRB80-HRB85 | R0.25 mm |
04C | 04C | 20CrMnMo | 4.6+0.02/-0.02*0.46-0.02 | HRB80-HRB85 | R0.25 mm |
04CH | 04CH | 20CrMnMo | 5.2+0.02/-0.02*0.46-0.015 | HRB80-HRB85 | R0.25 mm |
05BTF2 | 05BTF2 | 20CrMnMo | 7.8+0.03/-0.03*0.52-0.015 | HRB80-HRB85 | R0.25 mm |
05E | 05E | 20CrMnMo | 7.48-0.03*0.59-0.02 | HRB80-HRB85 | R0.25 mm |
06B | 06B | 20Mn | 8.3-0.06*0.7-0.02 | HRB80-HRB85 | R0.35 mm |
06C | 06C | 20Mn | 7.25-0.04*0.71-0.02 | HRB80-HRB85 | R0.35 mm |
420 | 420 | 20Mn | 9.27-0.04*0.78-0.02 | HRB80-HRB85 | R0.4 mm |
420H | 420H | 20Mn | 10.34-0.06*0.78-0.02 | HRB80-HRB85 | R0.4 mm |
08A 40 | 08A 40 | 20Mn | 10.92-0.04*0.78-0.02 | HRB80-HRB85 | R0.4 mm |
08AH 40H | 08AH 40H | 20Mn | 11.9-0.05*0.79-0.02 | HRB80-HRB85 | R0.4 mm |
08B | 08B | 20Mn | 10.9+0.02/-0.02*0.91-0.02 | HRB80-HRB85 | R0.45 mm |
08BH | 08BH | 20Mn | 11.94-0.04*0.91-0.02 | HRB80-HRB85 | R0.45 mm |
10A 50 | 10A 50 | 20Mn | 13.4-0.04*0.93-0.02 | HRB80-HRB85 | R0.47 mm |
10AH 50H | 10AH 50H | 20Mn | 14.15-0.04*0.94-0.02 | HRB80-HRB85 | R0.47 mm |
10B | 10B | 20Mn | 12.9-0.06*0.92-0.02 | HRB80-HRB85 | R0.47 mm |
10BH | 10BH | 20Mn | 13.2-0.06*0.94-0.02 | HRB80-HRB85 | R0.47 mm |
12A 60 | 12A 60 | 20Mn | 17.35-0.04*1.13-0.02 | HRB80-HRB85 | R0.6 mm |
12AH 60H | 12AH 60H | 20Mn | 18.97-0.04*1.13-0.02 | HRB80-HRB85 | R0.6 mm |
12B | 12B | 20Mn | 15.2-0.06*1.13-0.02 | HRB80-HRB85 | R0.6 mm |
12BH | 12BH | 20Mn | 16.4-0.06*1.02-0.02 | HRB80-HRB85 | R0.6 mm |
16A 80 | 16A 80 | 20Mn | 22.15-0.06*1.53-0.02 | HRB80-HRB85 | R0.8 mm |
16AH 80H | 16AH 80H | 20Mn | 23.85-0.06*1.53-0.02 | HRB80-HRB85 | R0.8 mm |
16B | 16B | 20Mn | 25.02-0.06*1.55-0.02 | HRB80-HRB85 | R0.8 mm |
16BH | 16BH | 20Mn | 24.75-0.04*1.25-0.02 | HRB80-HRB85 | R0.8 mm |
20A 100 | 20A 100 | 20Mn | 26.88-0.04*1.97-0.02 | HRB80-HRB85 | R0.97 mm |
20AH 100H | 20AH 100H | 20Mn | 28.8-0.04*1.95-0.02 | HRB80-HRB85 | R0.97 mm |
20B | 20B | 20Mn | 28.6-0.04*1.84-0.02 | HRB80-HRB85 | R0.97 mm |
P38 | P38 | 20Mn | 27.7-0.06*1.43-0.02 | HRB80-HRB85 | R0.8 mm |
S38H | S38H | 20Mn | 29.75-0.06*1.42-0.02 | HRB80-HRB85 | R0.8 mm |
CA550 | CA550 | 20Mn | 25.4-0.06*1.56-0.02 | HRB80-HRB85 | R0.8 mm |
24A 120 | 24A 120 | 20Mn | 34.8-0.06*2.14-0.02 | HRB80-HRB85 | R1.08 mm |
24B | 24B | 20Mn | 37.3-0.04*1.92-0.02 | HRB80-HRB85 | R0.97 mm |
