| Quantity: | |
|---|---|

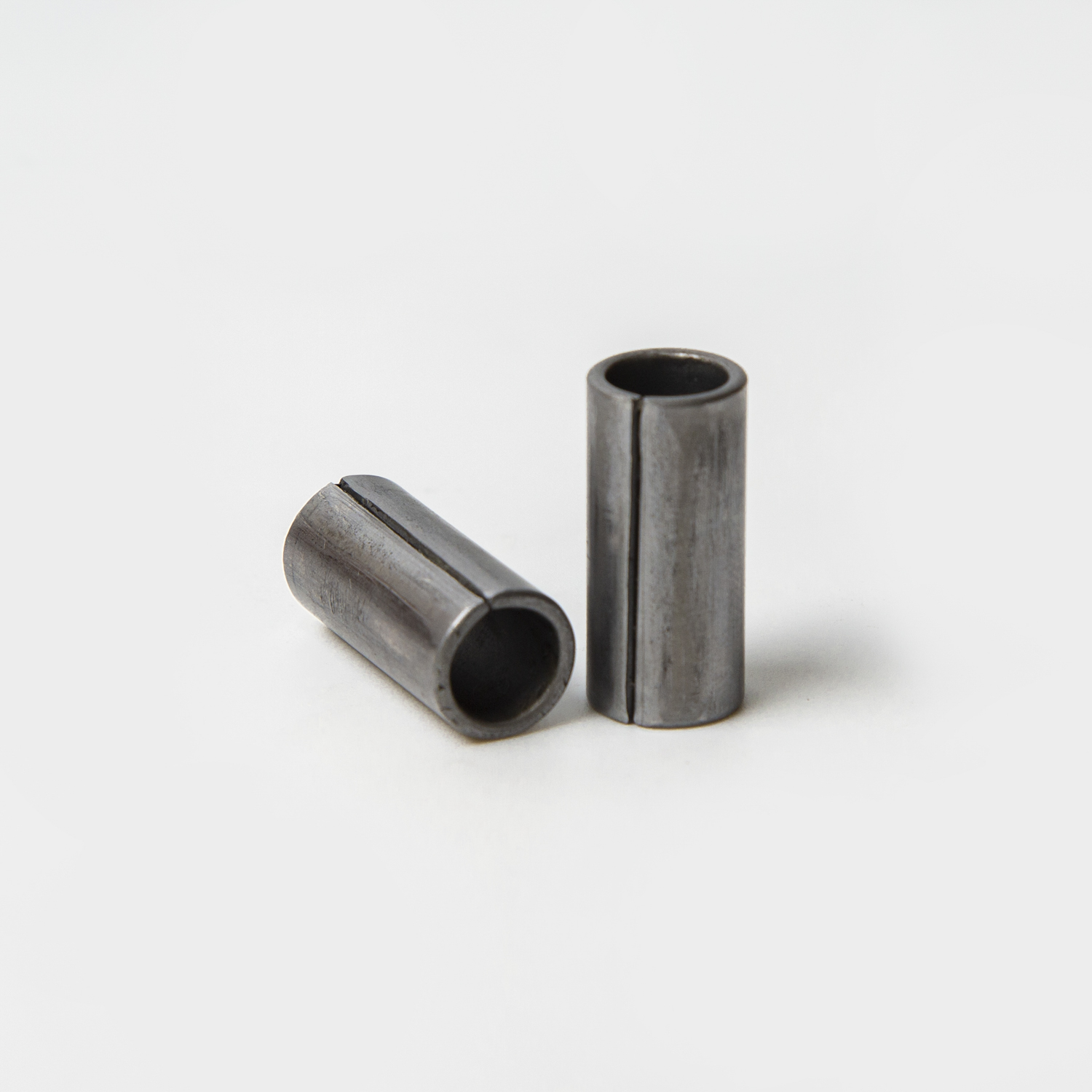

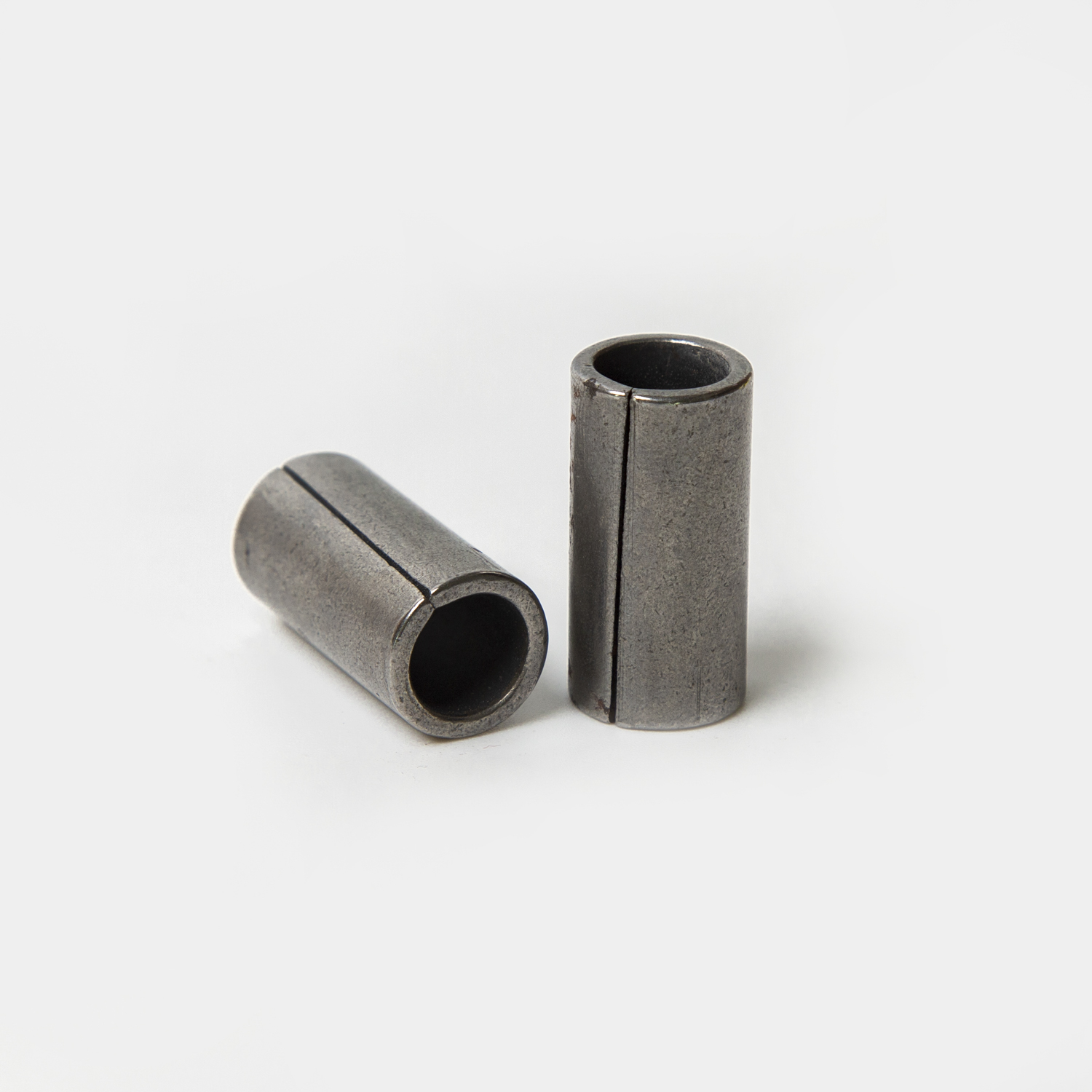

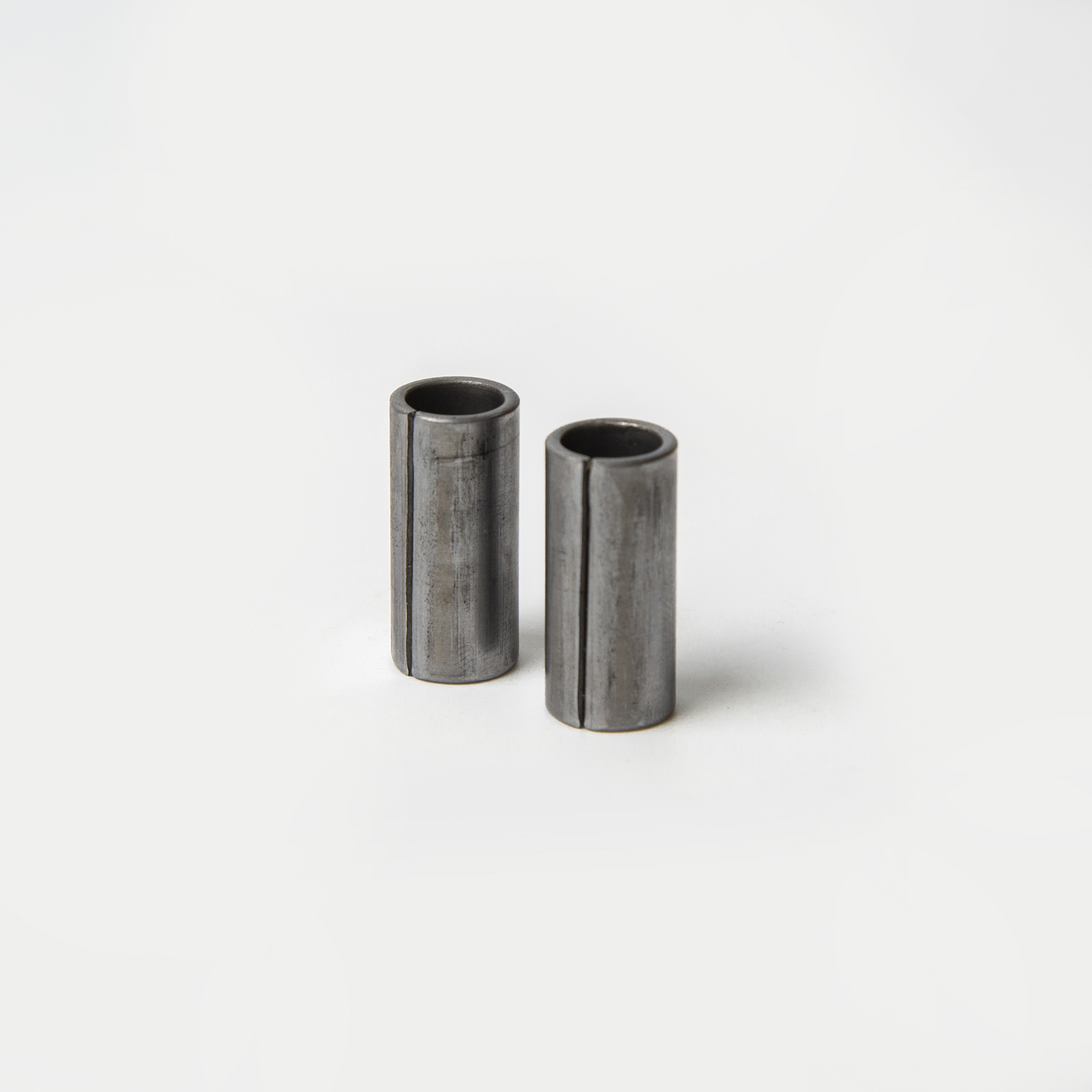

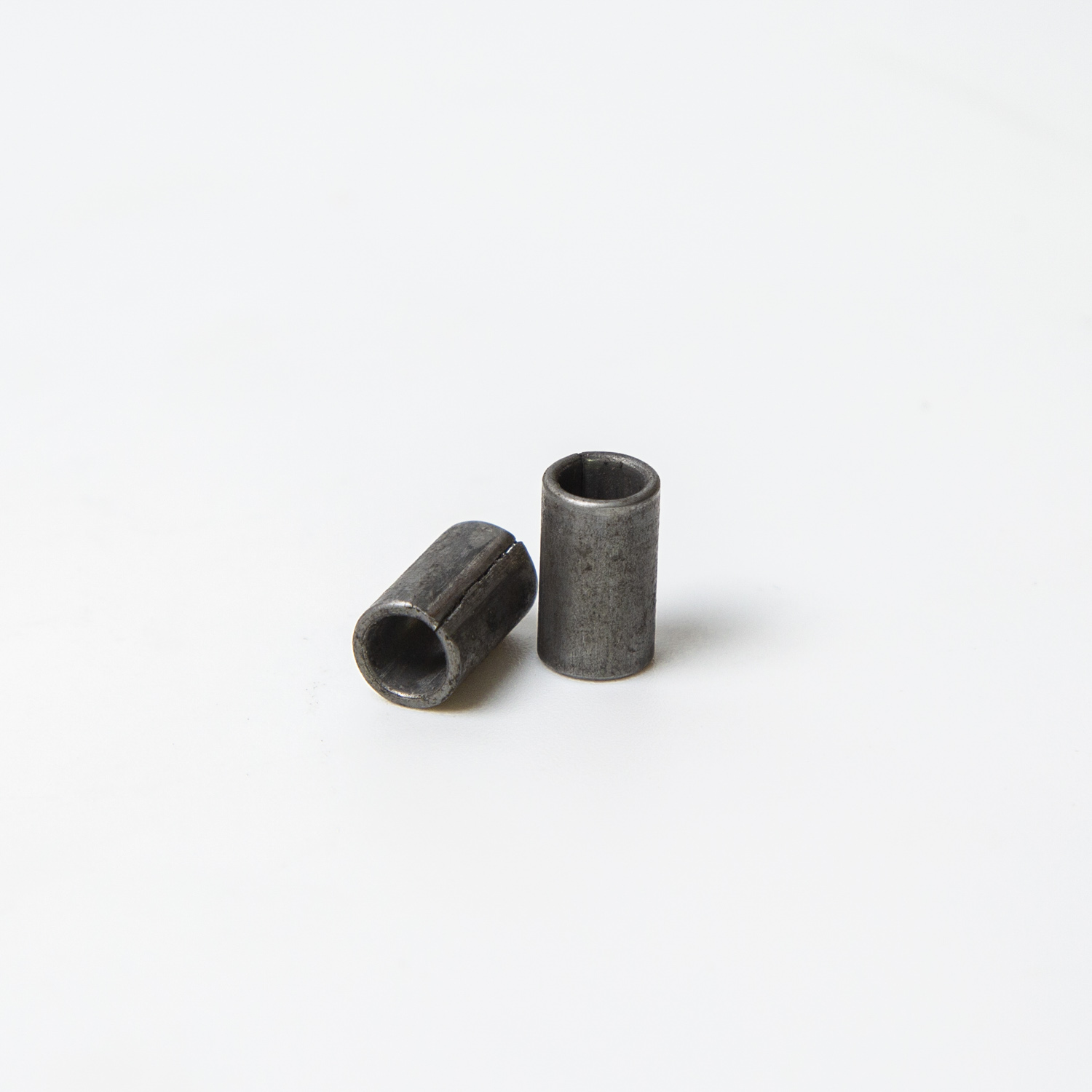

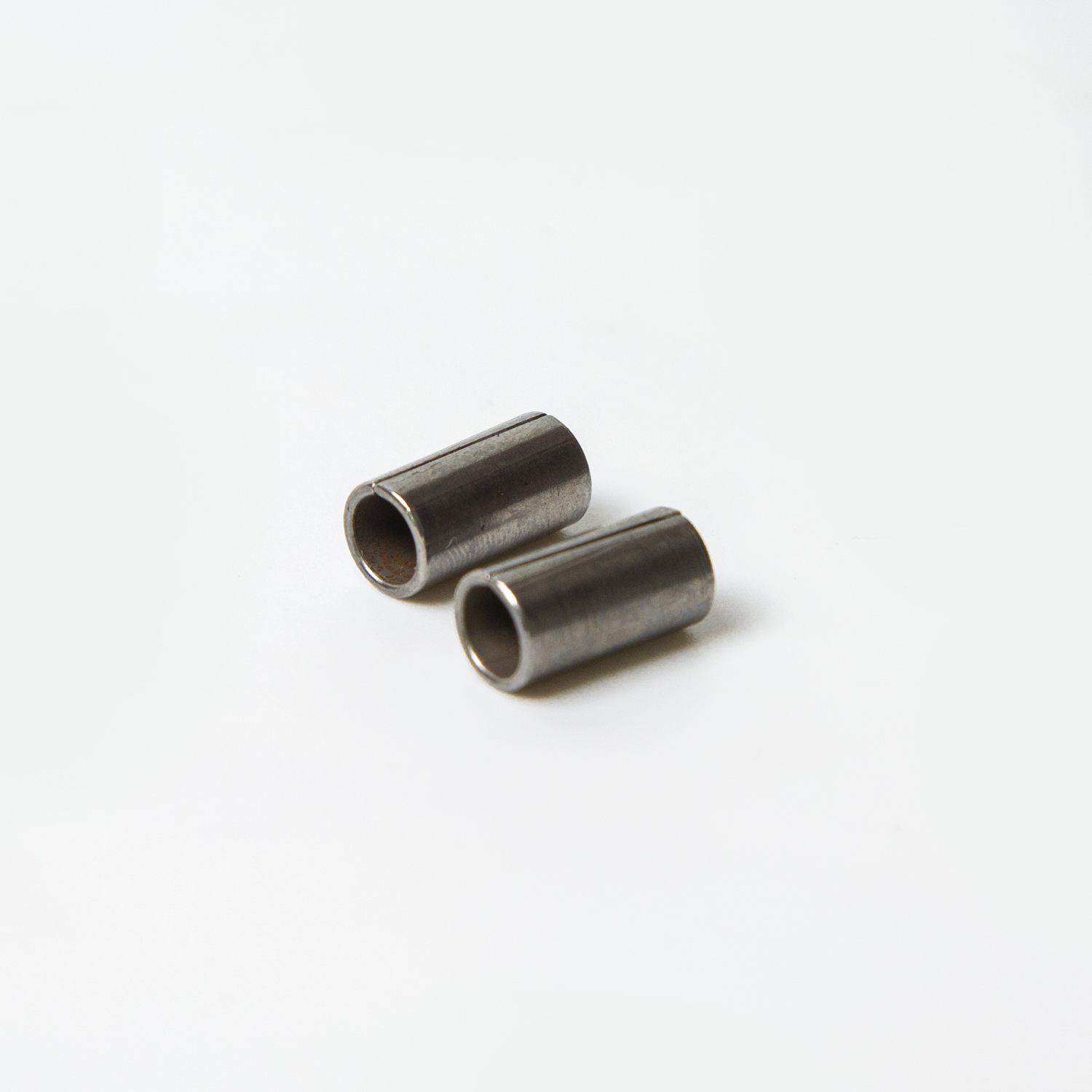

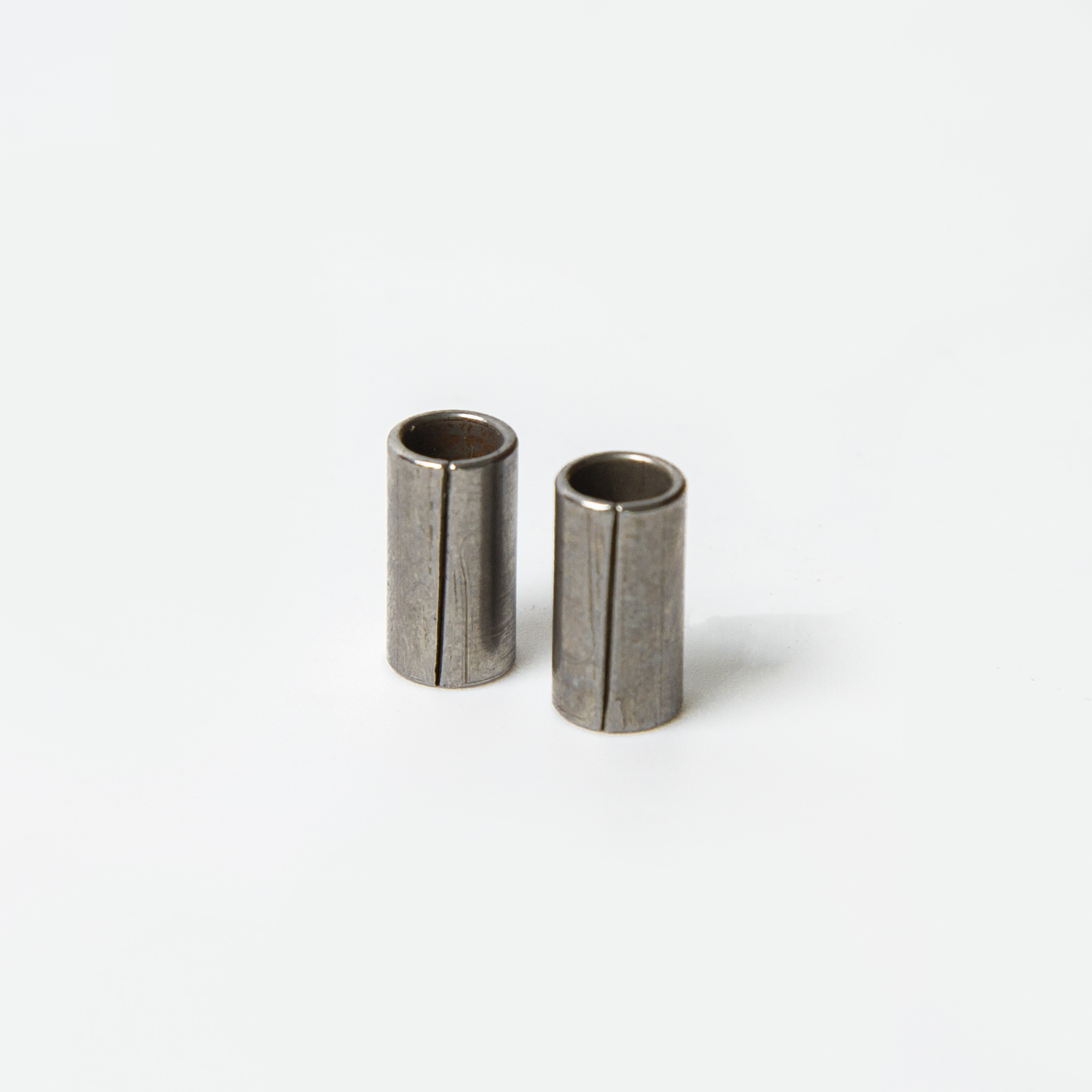

Product name | Bush |
Application | Industrial chain, motorcycle chain |
Material | Alloy steel |
Material grade | 20Mn 20CrMnMo |
Heat treatment | Available |
Dimension | According to your drawing |
Package | Plywood case & Wooden pallet |
Sample | Available |
MOQ | 1 TON |
Lead time | 30 Days |
FOB port | Ningbo or Shanghai |
FAQ
Q:Can you produce parts according to our drawing?
A:Yes
Q:Do you inspect bush quality in production process
A:Yes, our inspectors sampling test each process per hour
Q:Can you do heat treatment for parts
A:Yes
Q:What’s your lead time for small order and big order
A:It needs 30 days not matter small order or big order, cause the material treatment need at least 15 days.
Standard bush dimension list | ||||||
Item | Material grade | Outer diameter | inner diameter | Length | concentricity | gap |
04C (25) | 20Mn/10# | 3.3-0.01/-0.03 | 2.31+0.07/+0.05 | 4.78-0.075 | 0.015 | ≤0.1 |
04CH (25H) | 20Mn/10# | 3.3-0.02/-0.05 | 2.31+0.07/+0.05 | 5.23-0.12 | 0.015 | ≤0.1 |
06C | 20Mn/10# | 5.08-0.03 | 3.58+0.09/+0.06 | 7.4-0.15 | 0.025 | ≤0.12 |
06B | 20Mn/10# | 4.77-0.03 | 3.28+0.09/+0.07 | 8.5-0.15 | 0.025 | ≤0.12 |
420 | 20Mn/10# | 5.63-0.03 | 3.96+0.09/+0.06 | 9.4-0.15 | 0.04 | ≤0.15 |
08A 40 | 20Mn/10# | 5.63-0.03 | 3.96+0.09/+0.06 | 11.1-0.18 | 0.04 | ≤0.15 |
08B (428) | 20Mn/10# | 6.37-0.03 | 4.45+0.09/+0.07 | 11.1-0.18 | 0.04 | ≤0.15 |
08BH (428H) | 20Mn/10# | 6.37-0.03 | 4.52+0.02 | 12.2-0.18 | 0.04 | ≤0.15 |
10A (50) | 20Mn/10# | 7.03-0.03 | 5.08+0.09/+0.06 | 13.7-0.18 | 0.06 | ≤0.15 |
10B | 20Mn/10# | 7.03-0.03 | 5.08+0.09/+0.06 | 13.2-0.18 | 0.06 | ≤0.15 |
12A 60 | 20Mn/10# | 8.33-0.03 | 5.94+0.12/+0.08 | 17.65-0.18 | 0.06 | ≤0.15 |
12AH (60H) | 20Mn/10# | 8.33-0.03 | 5.94+0.12/+0.08 | 19.3-0.21 | 0.06 | ≤0.15 |
12B | 20Mn/10# | 8.1-0.03 | 5.72+0.1/+0.07 | 15.55-0.18 | 0.06 | ≤0.15 |
16A 80 | 20Mn/10# | 11.1-0.03 | 7.92+0.13/+0.09 | 22.5-0.21 | 0.08 | ≤0.15 |
16AH 80H | 20Mn/10# | 11.1-0.03 | 7.92+0.13/+0.09 | 24.1-0.21 | 0.08 | ≤0.15 |
16B | 20Mn/10# | 11.5-0.03 | 8.28+0.11/+0.075 | 25.43-0.21 | 0.06 | ≤0.15 |
20A 100 | 20Mn/10# | 13.58-0.03 | 9.61+0.04 | 27.35-0.25 | 0.08 | ≤0.15 |
20B | 20Mn/10# | 14.05-0.03 | 10.19+0.15/+0.1 | 28.9-0.21 | 0.08 | ≤0.15 |
P38 (ZGS38) | 20Mn/10# | 12-0.03 | 9+0.1/+0.15 | 28.1-0.21 | 0.08 | ≤0.15 |
24A 120 | 20Mn/10# | 15.6-0.03 | 11.1+0.19/+0.13 | 35.2-0.25 | 0.08 | ≤0.15 |
24B | 20Mn/10# | 18.69-0.03 | 14.63+0.21 | 37.7-0.25 | 0.08 | ≤0.15 |
S38H | 20Mn/10# | 12-0.03 | 9+0.1/+0.15 | 29.9-0.21 | 0.08 | ≤0.15 |
CA550 | 20Mn/10# | 11.11-0.03 | 7.1+0.16/+0.1 | 25.6-0.25 | 0.08 | ≤0.15 |
