| Quantity: | |
|---|---|

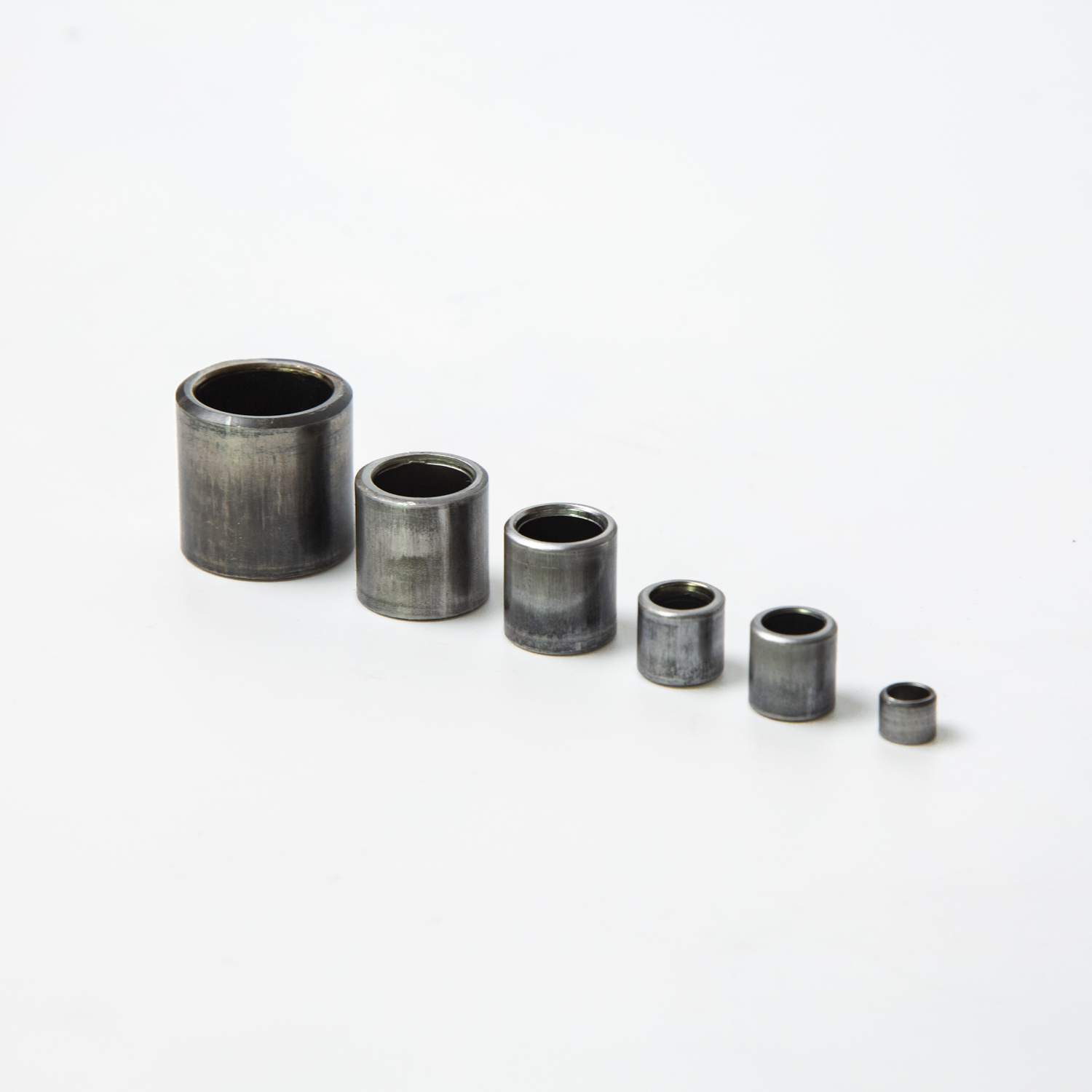

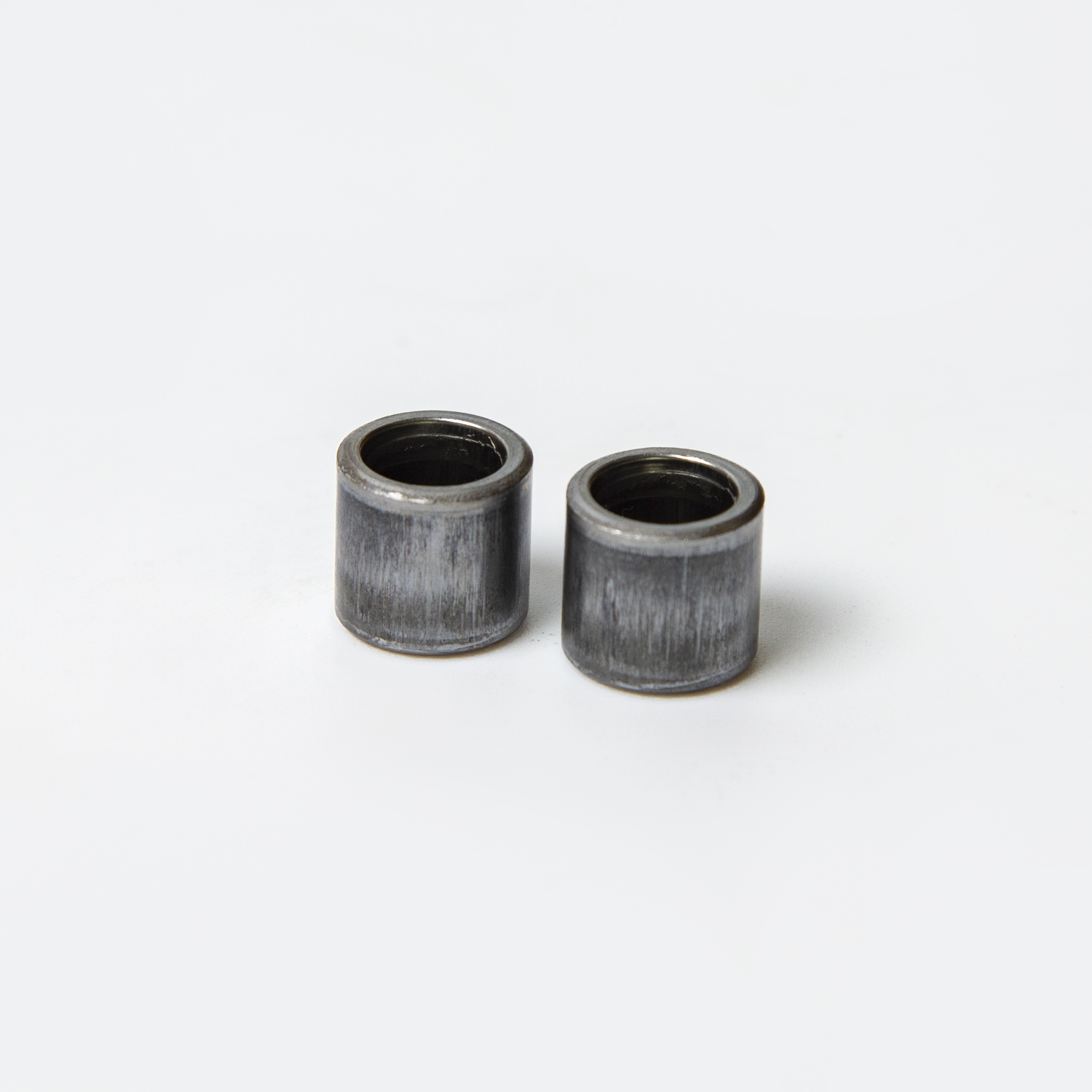

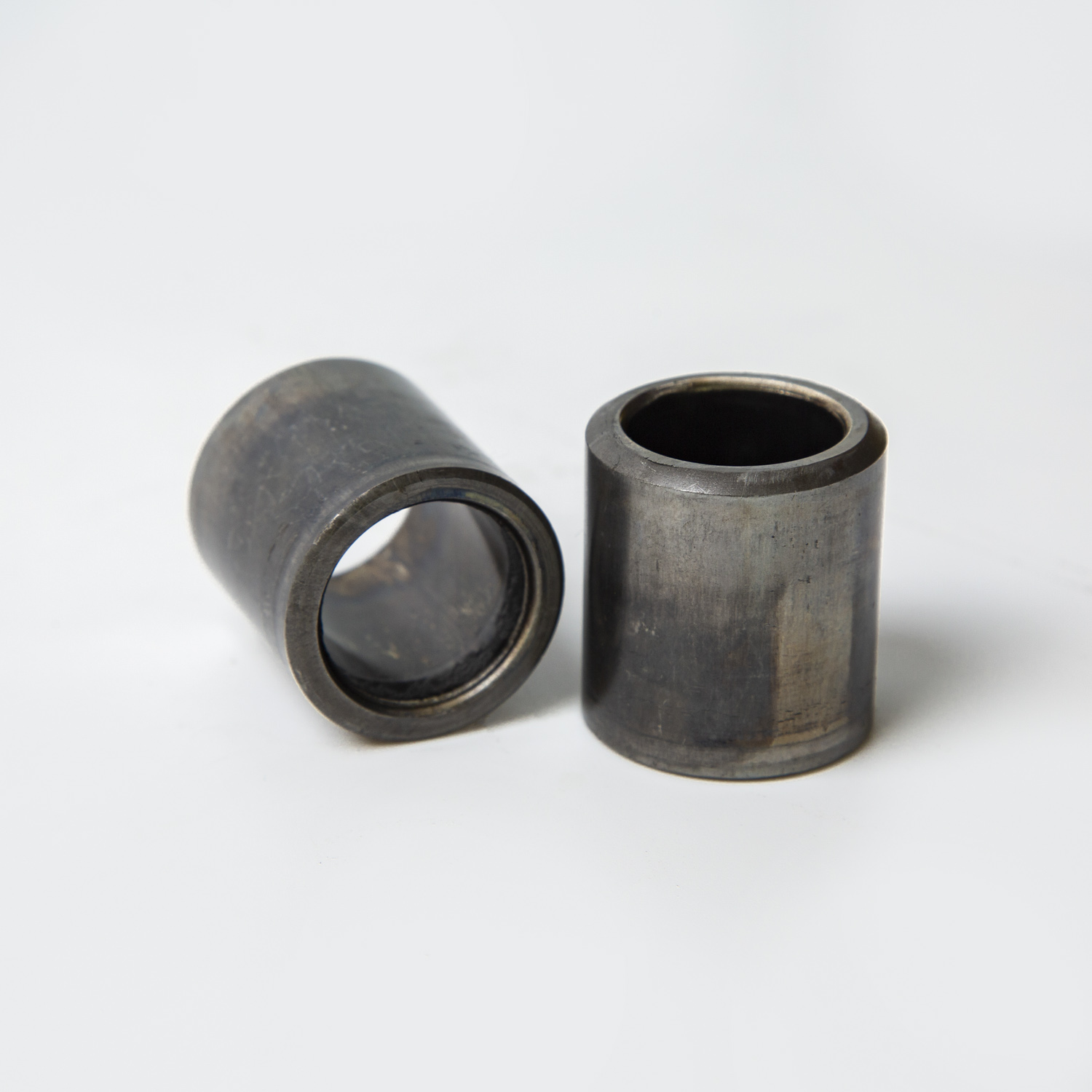

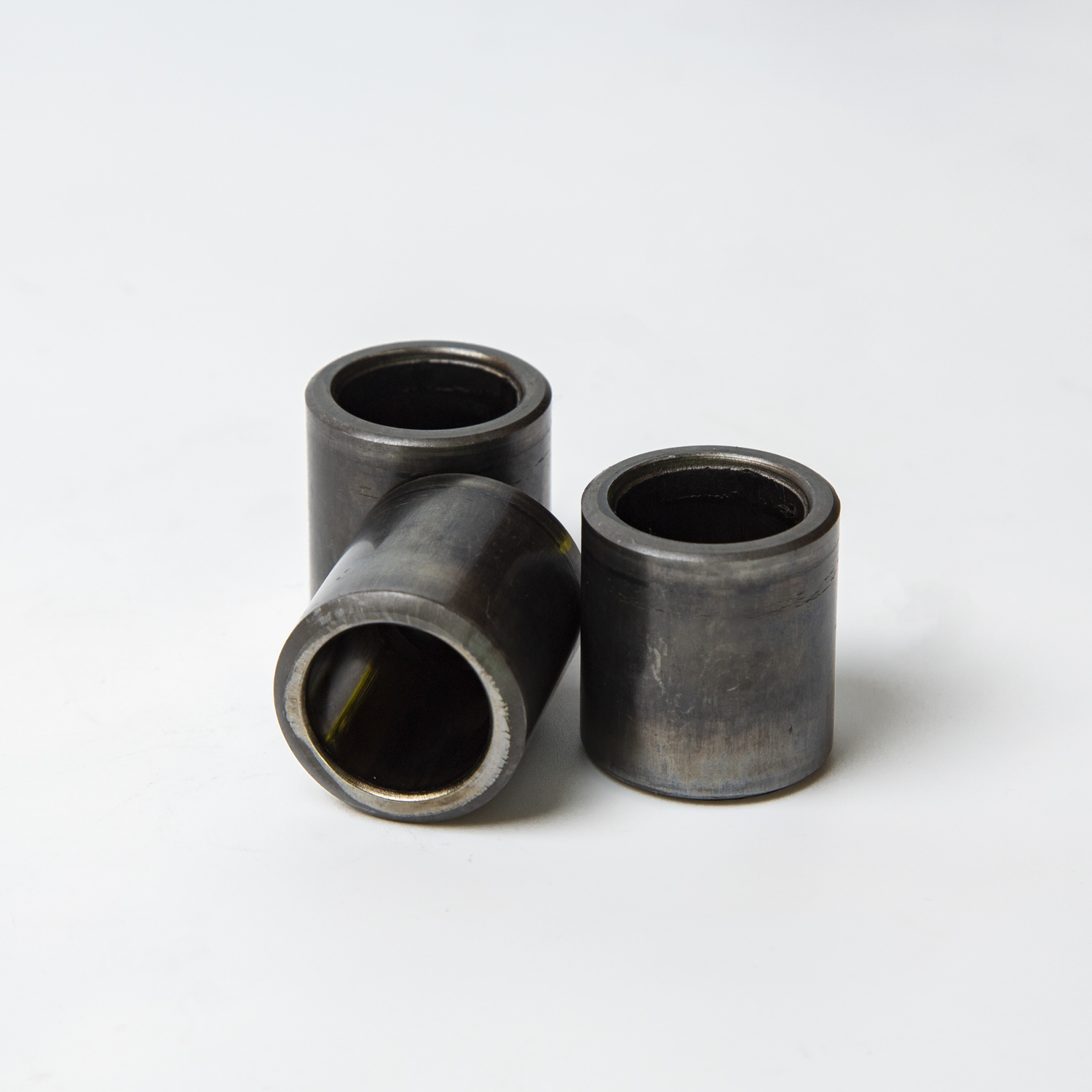

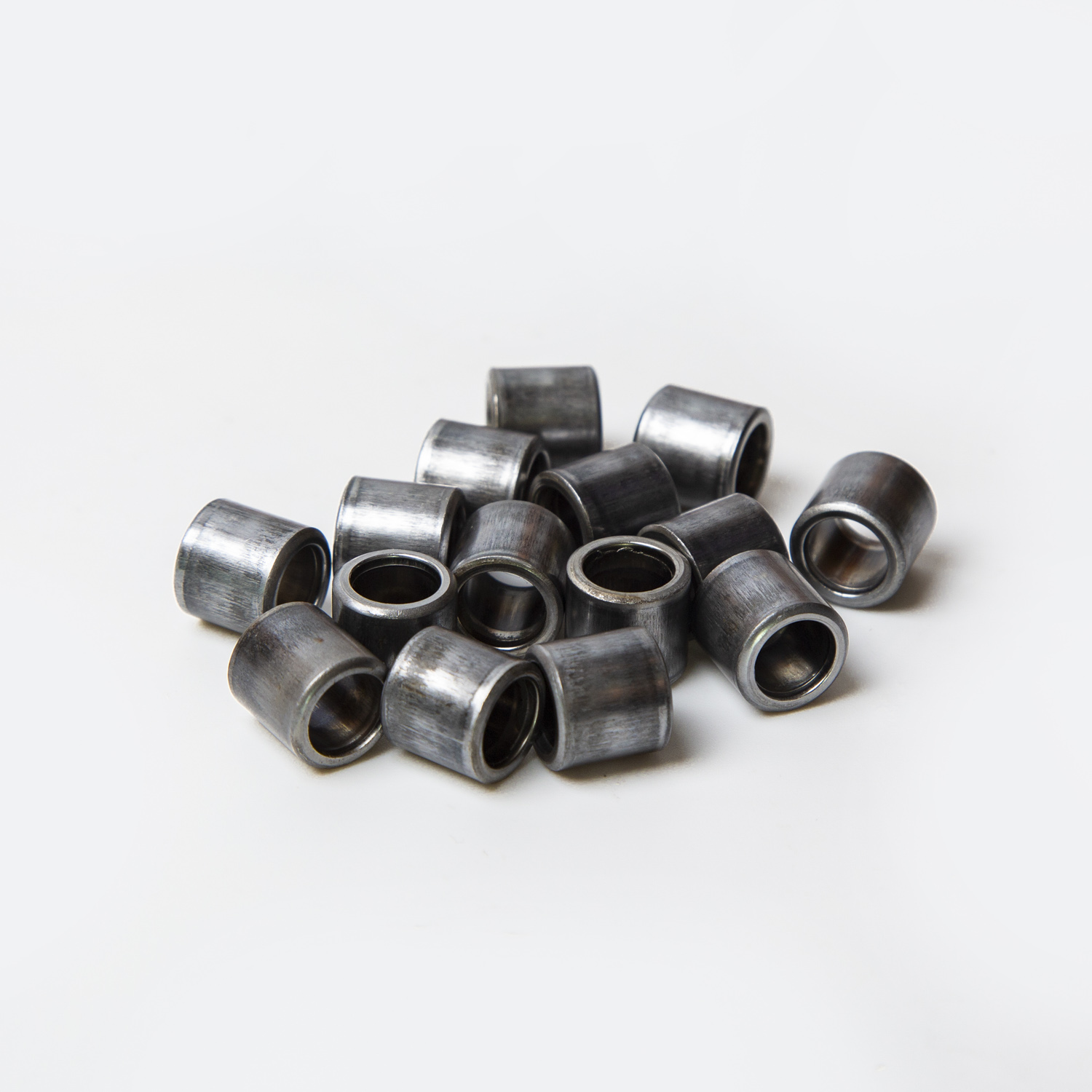

Product name | Roller |
Application | Roller chain, motorcycle chain |
Material | Alloy steel |
Material grade | SAE8620 SCM420 C1018 20CrMnMo 20Mn 40Cr 35ACR |
Heat treatment | Available |
Dimension | According to your drawing |
Package | Plywood case & wooden pallet |
Sample | Available |
MOQ | 1 ton |
Lead time | 30 Days |
FOB port | Ningbo or Shanghai |
FAQ
Q:Can you produce parts according to our drawing?
A:Yes
Q:May I start with a sample or a small quantity order to test it
A:We prefer to getting our parts tested before mass production.
Q:Can you do heat treatment for parts
A:Yes
Q:What’s your payment terms
A:We accept T/T.
Standard roller dimension list | |||||||
Item | Outer diameter mm | Inner diameter mm | height mm | Concentricity | |||
04B | 4.00 | 0.00 | 2.76 | +0.07 | 2.65 | 0.00 | |
-0.04 | +0.03 | -0.15 | |||||
05B | 5.00 | 0.00 | 3.3 | +0.07 | 2.97 | 0.00 | |
-0.04 | +0.03 | -0.15 | |||||
06B | 6.35 | 0.00 | 4.77 | +0.08 | 5.70 | 0.00 | 0.06 |
-0.05 | +0.03 | -0.20 | |||||
408 | 7.72 | 0.00 | 5.16 | +0.06 | 2.30 | 0.00 | 0.08 |
-0.05 | 0 | -0.10 | |||||
41 | 7.77 | 0.00 | 5.08 | +0.11 | 6.20 | 0.00 | 0.08 |
-0.05 | +0.06 | -0.22 | |||||
410 | 7.70 | 0.00 | 5.1 | +0.05 | 3.30 | 0.00 | 0.08 |
-0.05 | 0 | -0.10 | |||||
415 | 7.77 | 0.00 | 5.38 | +0.08 | 4.60 | 0.00 | 0.08 |
-0.05 | +0.03 | 0.20 | |||||
415H | 7.77 | 0.00 | 5.63 | +0.12 | 4.60 | 0.00 | 0.08 |
-0.05 | +0.07 | 0.20 | |||||
420 | 7.77 | 0.00 | 5.63 | +0.08 | 6.20 | 0.00 | 0.08 |
-0.05 | +0.03 | -0.20 | |||||
08A 40 (208A) | 7.95 | 0.00 | 5.63 | +0.11 | 7.80 | 0.00 | 0.08 |
-0.05 | +0.06 | -0.25 | |||||
C208AL | 15.88 | 0.00 | 5.63 | +0.15 | 7.60 | 0.00 | 0.12 |
-0.08 | +0.1 | -0.25 | |||||
08B 428 | 8.51 | 0.00 | 6.37 | +0.09 | 7.70 | 0.00 | 0.08 |
-0.05 | +0.04 | -0.25 | |||||
50 10B | 10.16 | 0.00 | 7.03 | +0.12 | 9.40 | 0.00 | 0.08 |
-0.07 | +0.07 | -0.25 | |||||
520 | 10.16 | 0.00 | 7.03 | +0.12 | 6.25 | 0.00 | 0.12 |
-0.07 | +0.07 | -0.22 | |||||
525 | 10.16 | 0.00 | 7.03 | +0.12 | 7.85 | 0.00 | 0.12 |
-0.07 | +0.07 | -0.20 | |||||
C210AL | 19.05 | 0.00 | 7.03 | +0.17 | 9.30 | 0.00 | 0.12 |
-0.05 | +0.12 | -0.25 | |||||
60 212A | 11.91 | 0.00 | 8.33 | +0.13 | 12.50 | 0.00 | 0.12 |
-0.07 | +0.08 | -0.30 | |||||
C212AL | 22.23 | 0.00 | 8.33 | +0.2 | 12.40 | 0.00 | 0.12 |
-0.05 | +0.13 | -0.30 | |||||
630 | 11.91 | 0.00 | 8.33 | +0.13 | 9.30 | 0.00 | 0.12 |
-0.07 | +0.08 | -0.30 | |||||
12B | 12.07 | 0.00 | 8.1 | +0.12 | 11.65 | 0.00 | 0.12 |
-0.07 | +0.06 | -0.30 | |||||
Standard roller dimension list | |||||||
Item | Outer diameter mm | Inner diameter mm | height mm | Concentricity | |||
80 216A | 15.88 | 0.00 | 11.1 | +0.16 | 15.70 | 0.00 | 0.12 |
-0.07 | +0.1 | -0.30 | |||||
16B | 15.88 | 0.00 | 11.5 | +0.2 | 16.80 | 0.00 | 0.12 |
-0.07 | +0.15 | -0.30 | |||||
C216AL | 28.58 | 0.00 | 11.1 | +0.21 | 15.50 | 0.00 | 0.15 |
-0.08 | +0.15 | -0.30 | |||||
C2080H | 28.70 | 0.00 | 16 | +0.1 | 15.60 | 0.00 | 0.15 |
-0.07 | 0 | -0.25 | |||||
100 | 19.05 | 0.00 | 13.6 | +0.22 | 18.85 | 0.00 | 0.15 |
-0.08 | +0.15 | -0.33 | |||||
20B | 19.05 | 0.00 | 14.05 | +0.18 | 19.50 | 0.00 | 0.15 |
-0.08 | +0.11 | -0.33 | |||||
120 | 22.23 | 0.00 | 15.6 | +0.25 | 25.00 | 0.00 | 0.15 |
-0.08 | +0.17 | -0.33 | |||||
24B | 25.40 | 0.00 | 18.69 | +0.26 | 25.20 | 0.00 | 0.20 |
-0.10 | +0.18 | -0.33 | |||||
160 | 25.40 | 0.00 | 18 | +0.26 | 25.00 | 0.00 | 0.15 |
-0.10 | +0.18 | -0.33 | |||||
28B | 27.94 | 0.00 | 20.37 | +0.28 | 30.70 | 0.00 | 0.20 |
-0.10 | +0.2 | -0.33 | |||||
200 | 28.58 | 0.00 | 20 | +0.28 | 31.30 | 0.00 | 0.20 |
-0.08 | +0.2 | -0.40 | |||||
32B | 29.21 | 0.00 | 22.48 | +0.28 | 30.50 | 0.00 | 0.20 |
-0.10 | +0.2 | -0.40 | |||||
08BHP | 6.37 | 0.00 | 4.5 | +0.1 | 16.80 | 0.00 | 0.05 |
-0.03 | 0 | -0.20 | |||||
40HP | 5.63 | 0.00 | 4 | +0.15 | 16.50 | 0.00 | 0.05 |
-0.03 | +0.05 | -0.18 | |||||
50HP | 7.03 | 0.00 | 5.13 | +0.15 | 20.70 | 0.00 | 0.05 |
-0.03 | +0.05 | -0.18 | |||||
10BHP | 7.03 | 0.00 | 5.13 | +0.15 | 19.50 | 0.00 | 0.05 |
-0.03 | +0.05 | -0.18 | |||||
60HP | 8.33 | 0.00 | 6 | +0.15 | 27.40 | 0.00 | 0.06 |
-0.03 | +0.05 | -0.21 | |||||
12BHP | 8.10 | 0.00 | 6 | +0.25 | 22.70 | 0.00 | 0.06 |
-0.03 | +0.15 | -0.21 | |||||
80HP | 11.10 | 0.00 | 8.4 | +0.1 | 32.70 | 0.00 | 0.08 |
-0.03 | 0 | -0.25 | |||||
16BHP | 11.50 | 0.00 | 8.2 | +0.15 | 37.70 | 0.00 | 0.08 |
-0.03 | +0.05 | -0.25 | |||||
HP35 | 14.00 | 0.00 | 10.2 | +0.25 | 31.20 | 0.00 | 0.08 |
-0.03 | +0.15 | -0.18 | |||||
